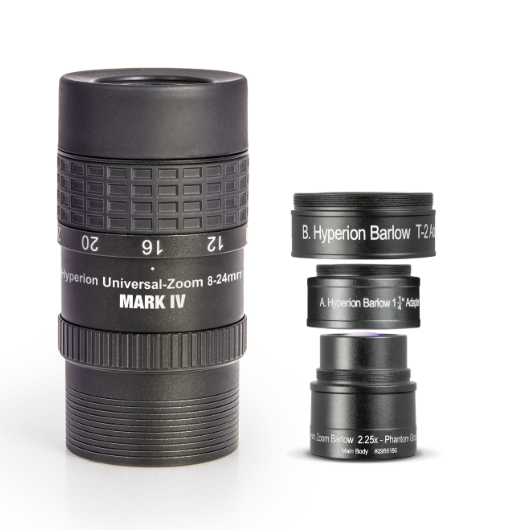

Baader Hyperion Universal Zoom Mark IV, 8-24mm Eyepiece with Hyperion-Barlow 2.25x

Baader Hyperion Universal Zoom Mark IV, 8-24mm Eyepiece with 2.25x Hyperion Barlow

Premium Zoom Eyepiece for Astronomy & Astrophotography – Now Available at Modern Telescopes, India’s Largest Telescope Store

The Baader Hyperion Universal Zoom Mark IV (8–24mm) is one of the most versatile and acclaimed zoom eyepieces in the astronomy community. Known for its exceptional optical performance, click-stop zoom mechanism, and lightweight ergonomic construction, it allows seamless magnification changes without switching eyepieces. Paired with the Baader Hyperion 2.25x Barlow, this combination expands your magnification range, offering both wide-angle deep sky viewing and high-power planetary observation in one compact kit.

ATTENTION: Please note that this set of Zoom+Barlow is only meant for astronomical use. It will not come to focus in combination with spotting scopes

• Consists of Hyperion Universal Zoom Mark IV, 8-24mm eyepiece and Hyperion Barlow lens 2.25x

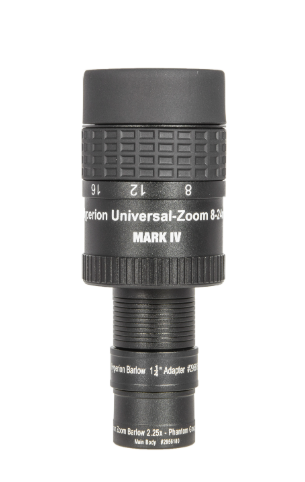

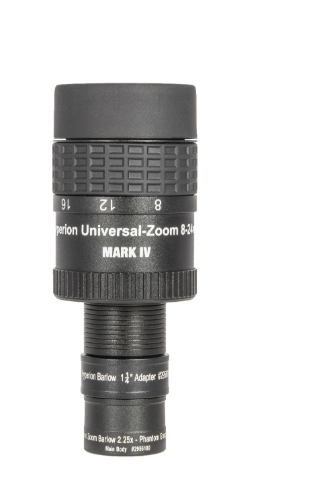

• This combination of Hyperion Zoom and Hyperion Barlow creates an all-in-one astro quality grade zoom providing a focal length range (with and without Barlow) from 3.6 to 24mm

Bundle: Hyperion Universal Zoom Mark IV with Hyperion-Barlow 2.25x (8-24mm / 3.6-10.7mm)

Key Features

🔭 Variable Focal Length – 8 to 24mm Zoom
Switch magnifications instantly, perfect for observing planets, galaxies, nebulae, star clusters, the Moon, and more.

🌕 Includes 2.25x Hyperion Barlow Lens
Boosts power for planetary and lunar detail, converting the zoom range to approx. 3.5–10.7mm.

✨ High Definition Optics
Fully multi-coated lenses ensure excellent light transmission and contrast with minimal chromatic aberration.

👁 Comfortable Eye Relief
Long eye relief makes extended observing sessions easy, even with glasses.

🔄 Click-Stop Zoom System
Four tactile stops (8, 12, 16, 20 & 24mm) allow quick and precise focal adjustments.

📷 Ideal for Visual & Astrophotography Use
Compatible with DSLR & smartphone adapters via standard thread connections.

🔌 Dual Barrel – 1.25" & 2" Compatibility
Fits almost all telescopes — refractors, reflectors, and catadioptrics.

💼 Lightweight, Durable & Travel-Friendly Design

Specifications

• Apparent Field of View :  48° - 68°
• AR-Coating: Phantom Coating® Group
• Barrel Size (in) : 11/4" and 2"
• Focal Length: 3.6 - 24 mm
• Optical Design : Modular
• Parfocal Eyepieces: Yes
• Speciality : Eyepiece projection: classical

Perfect For

✔ Planetary Observation
✔ Moon & Surface Detailing
✔ Deep Sky Objects
✔ Solar Observation (with proper solar filter)
✔ DSLR & Smartphone Astrophotography
✔ Travelling Astronomers & Quick Setup Users

Why Buy from Modern Telescopes?

As India’s largest authorized telescope distributor, Modern Telescopes guarantees original, brand-new, warranty-covered products with professional support and fast delivery across India. Our expert team also provides telescope guidance, astronomy assistance, and setup help for beginners and advanced users.

Connections

• Camera Thread : M43
• Inner Connection (lens sided)
  M36.4

  2"/SCT Thread (50.8mm)
• Outer Connection (eyepiece/-camera-sided) : M43
• Outer Connection (lens sided)
  ø 11/4" (31.75 mm)

  ø 2" (50.8mm)

  M53
• Threaded for filters
  Yes

Included Items

• Dustcaps
  11/4" dustcap (31.8mm) 2"; dustcap (45mm);2" dustcap (46.5mm - fits over eyecup)
• Eyecups
  large height adjustable eyecup (M43)

  small eyecup (M43)

  winged eyecup (M43)

  Eyepiece Design

  • Eyepiece Body above Reference Plane (mm): 81 mm
  • Length of 11/4" barrel (mm): 24.5 mm
  • Length of 2" barrel (mm): 27 mm
  • Number of Groups : 4
  • Number of Lens Elements : 7
  • Outer Diameter : 55 mm
