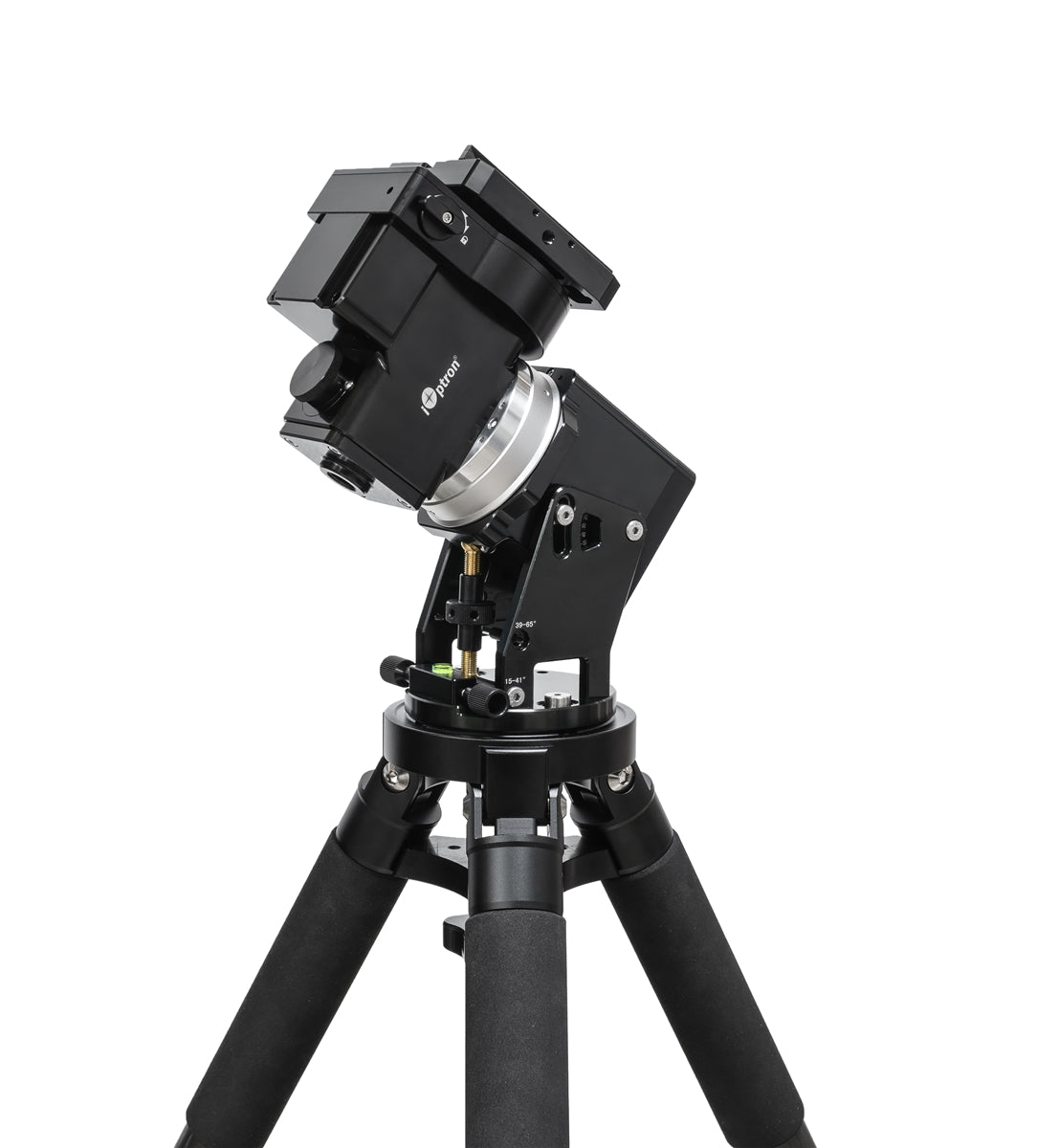

HEM27 EQ SWG Hybrid Mount with iPolar
Now Available at Modern Telescopes – Authorized Distributor
Introducing the HEM27 EQ SWG Hybrid Mount with iPolar, a next-generation equatorial mount engineered for astronomers who demand maximum payload capacity in a remarkably compact, lightweight form. Designed by iOptron, the HEM27 series blends advanced strain wave (harmonic) drive technology with a backlash-free DEC worm/belt system, delivering an observing and imaging experience that redefines portability and precision.
Tiny Titan. Serious Performance.
Imagine a mount head weighing just 8.15 lbs (3.7 kg) that effortlessly handles 29.74 lbs (13.5 kg) of payload—without a counterweight. That’s the power of iOptron’s decades-long expertise distilled into a compact hybrid design built for both visual observers and astrophotographers. The HEM27’s all-metal, CNC-machined, black anodized body is rugged, elegant, and made to perform flawlessly for years.
Hybrid Drive Excellence
The HEM27 utilizes a StrainWave 17 gear system in RA combined with a precision backlash-free DEC worm/belt drive, achieving an outstanding payload-to-weight ratio of 3.65. An electronic friction brake safeguards your equipment by instantly stopping movement during both planned and unplanned power interruptions—peace of mind you can rely on in the field.
iPolar Inside – Fast, Accurate Alignment
Integrated iPolar electronic polar scope technology makes polar alignment fast, accurate, and hassle-free, even under light-polluted skies—perfect for portable astrophotography setups.
Smart Control, Any Way You Like
Control the HEM27 your way:
-
Windows PC via ASCOM / iOptron Commander
-
macOS / Linux / Raspberry Pi via INDI drivers
-
Smartphone / Tablet using iOptron Commander Lite or SkySafari
-
Built-in Wi-Fi, USB connectivity, and Go2Nova® 8409 hand controller with ~212,000 object database
HEM27EC Option – Image Without Guiding
For demanding imagers, the HEM27EC variant features a high-precision RA axis encoder, delivering exceptional tracking accuracy—so precise that many users can image without autoguiding.
Key Features & Highlights
-
Advanced strain wave (harmonic) drive technology
-
13.5 kg (29.7 lbs) payload with only 3.7 kg mount weight
-
CNC-machined all-metal construction, anodized black finish
-
Electronic friction brake for power-off safety
-
360-second gear period
-
Go2Nova® 8409 hand controller (≈212,000 objects)
-
Integrated iPolar electronic polar scope
-
Internal cable management (no external dangling cables)
-
Dual saddle: Vixen & Losmandy-D
-
Built-in zero position search & locator
-

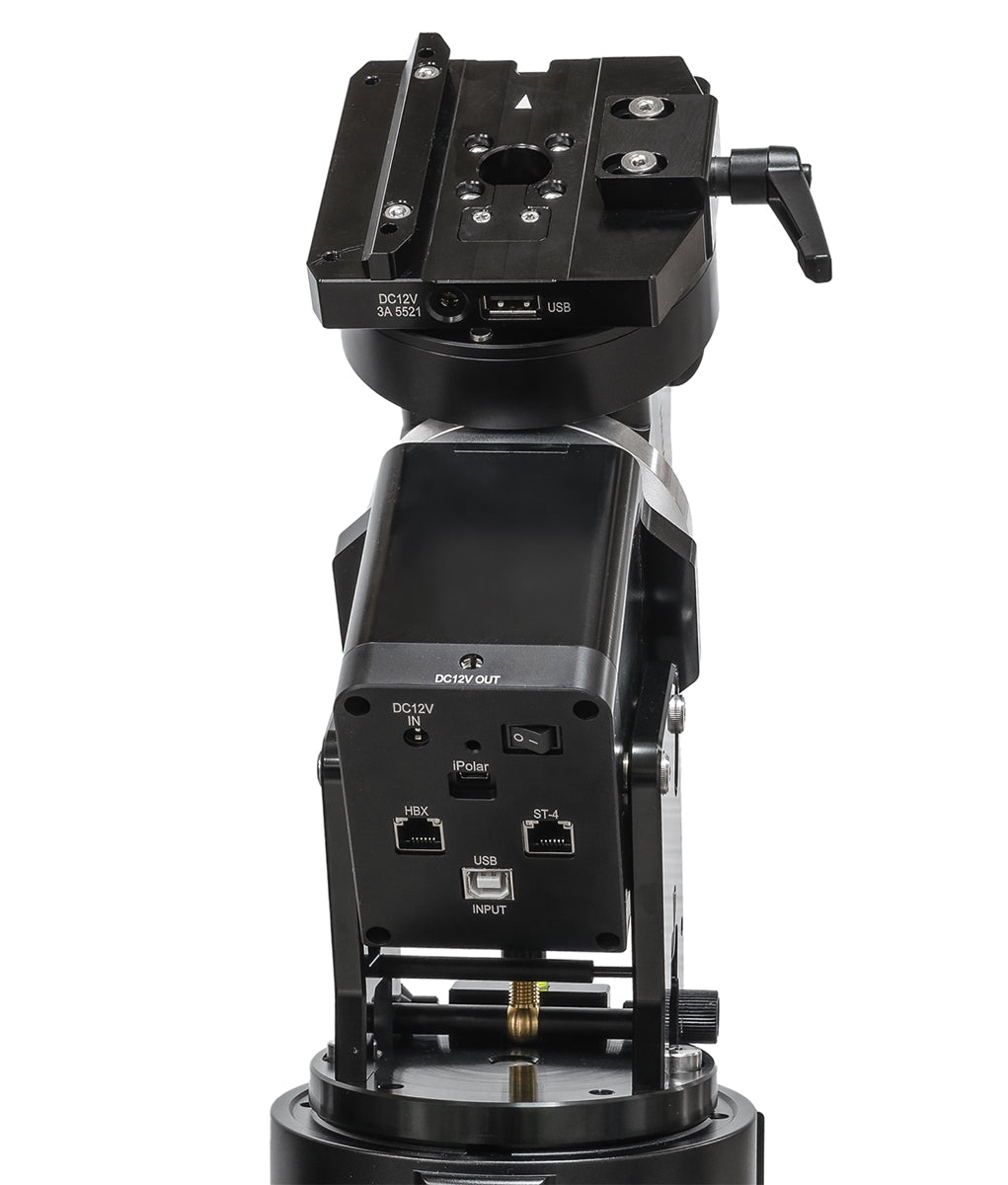

ST-4 autoguide port, USB port, built-in Wi-Fi
-

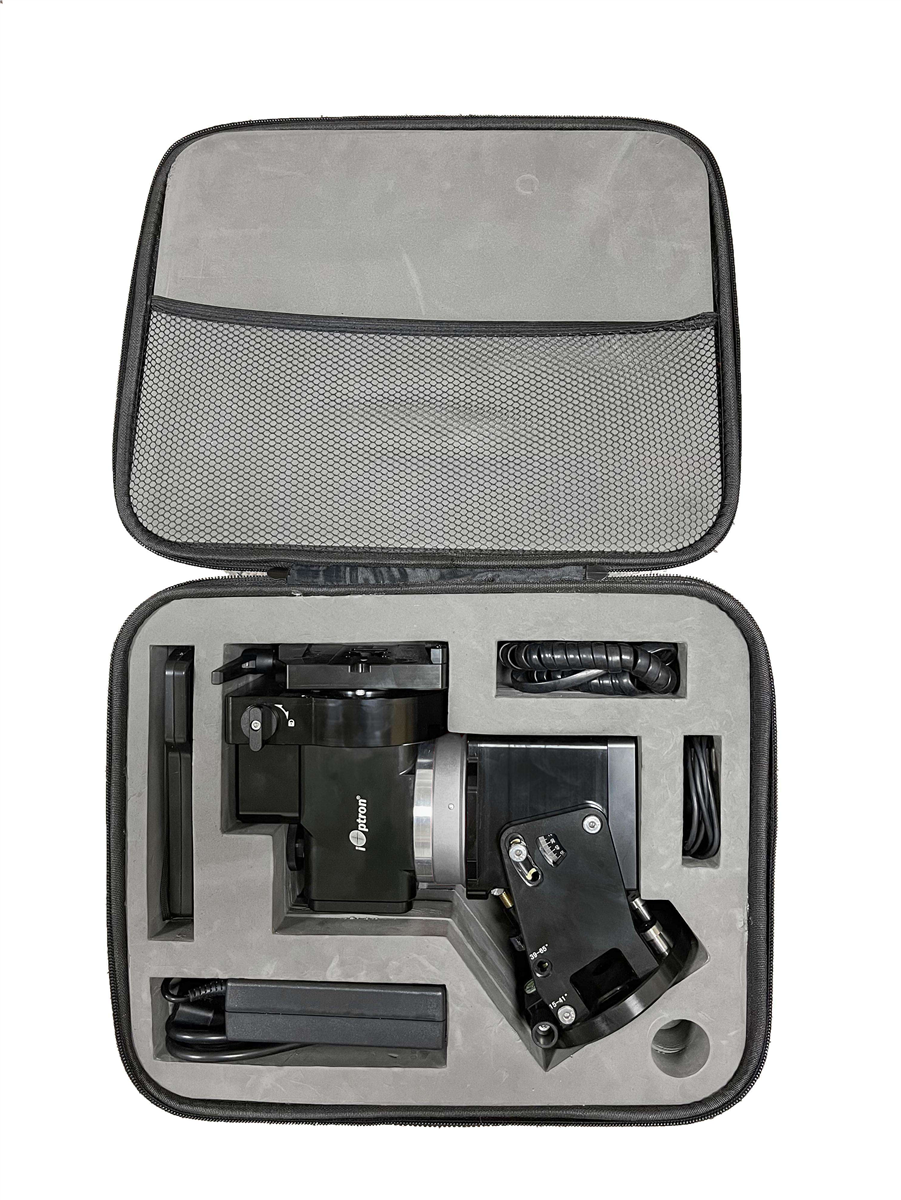

Soft carrying case included
-
Two-year limited warranty
-
Low-latitude (0°–22°) version available on special order
Technical Specifications (At a Glance)
-
Mount Type: Hybrid Equatorial Mount
-
RA Gear: StrainWave 17 (480:1)
-
DEC Gear: Backlash-free worm/belt
-
Payload (no CW): 13.5 kg / 29.74 lbs
-
Max Payload (with CW): 20 kg / 44 lbs
-
Mount Weight: 3.4 kg (without saddle) / 3.7 kg (with saddle)
-
Latitude Range: 15° – 65°
-
Max Slew Speed: 6°/sec
-
Power: DC 12V, 5A
-
Operating Temp: −20°C to +40°C
-
Warranty: 2 Years
* Payload rating based on 200 mm CG distance to RA axis.
