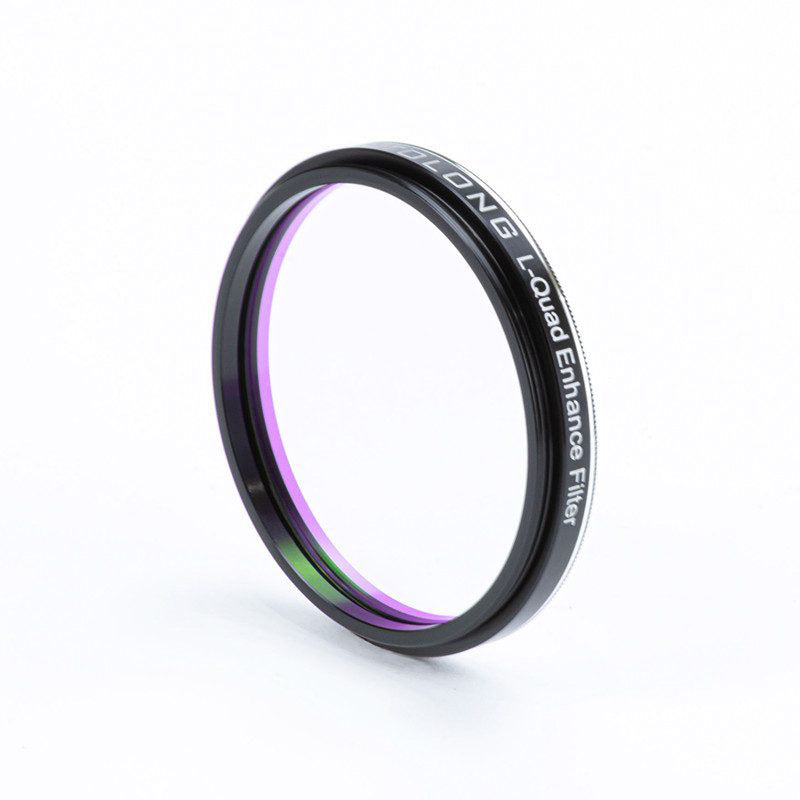

Optolong L-Quad Enhance Filter (L-QEF) 2" – Quad Bandpass Light Pollution Filter

The Optolong L-Quad Enhance Filter (L-QEF) 2" is a next-generation, quad bandpass light pollution suppression filter engineered specifically for color astrophotography cameras (OSC/DSLR/Mirrorless). Designed to tackle urban sky glow while preserving natural color fidelity, the L-QEF is an essential tool for deep-sky astrophotographers shooting under suburban and urban skies across the world.

Technical Overview & How It Works

Unlike aggressive dual-band filters that distort stars into unnatural halos or destroy continuous spectrum targets, the L-QEF utilizes a quad-passband design. It selectively passes critical deep-sky nebula emission lines while aggressively isolating and blocking artificial light sources.

Wavelength Targeting & Suppression Performance

• Target Emission Lines (Greater than 90% Transmittance):

  • H-Beta ($\text{H}\beta$): 486.1 nm

  • Oxygen III ($\text{OIII}$): 495.9 nm & 500.7 nm

  • Hydrogen-Alpha ($\text{H}\alpha$): 656.3 nm

  • Sulfur II ($\text{SII}$): 671.6 nm & 672.4 nm

• Targeted Light Pollution Blocking:

  • Mercury Vapor ($\text{Hg}$): 435.8 nm, 546.1 nm, 577 nm, 579 nm

  • High/Low-Pressure Sodium ($\text{Na}$): 589 nm & 590 nm

  • Skylight & Airglow Suppression: Blocks sky glow interference across 300 nm–1000 nm.

• IR Cut-Off: Built-in near-infrared cut-off up to 1000 nm eliminates the need for a separate IR-Cut filter, protecting your images from thermal noise and IR star bloating.

Key Benefits for Astrophotographers in India

1. Broadband & Reflection Target Support: Works exceptionally well on broadband targets—such as the Milky Way, star clusters, galaxies (e.g., Andromeda, Triangulum), and reflection nebulae—where traditional narrow-band filters fail.

2. Minimal Color Cast: Preserves accurate, natural star colors without requiring extreme post-processing color correction.

3. Bortle 1 to Bortle 7 Optimization: Improves Signal-to-Noise Ratio (SNR) significantly under Bortle 1 through Bortle 7 skies, allowing longer exposures and finer detail retrieval.

4. Ion-Assisted Deposition (IAD) Coating: Multi-layer anti-reflection precision coating guarantees high central wavelength (CWL) stability regardless of ambient temperature fluctuations.

Technical Specifications

Target Applications

• Galaxies & Clusters: Captures spiral arms and globular clusters with enhanced contrast against urban light pollution.

• Emission & Reflection Nebulae: Ideal for wide-field hydrogen-alpha regions, dark nebulae, and faint reflection dust.

• Wide-Field & Milky Way Imaging: Compatible with fast optical systems ($\text{f}/2$ to $\text{f}/6$) without noticeable band-pass shifts.

Frequently Asked Questions (FAQ)

Compatibility & Setup

Q: Is the Optolong L-Quad Enhance Filter compatible with my camera setup?

The 2" version features standard $\text{M48} \times 0.75$ male threads. It screws directly into standard 2" filter drawers, filter wheels, focal reducers, field flatteners, or 2" nosepieces. It is designed primarily for One-Shot Color (OSC) dedicated astronomy cameras (e.g., ZWO ASI, Player One) and astro-modified or stock DSLR/Mirrorless cameras.

Q: Do I need a separate UV/IR Cut filter when using the L-QEF?

No. The L-Quad Enhance Filter features a built-in UV/IR cut coating that blocks unwanted light from 300 nm to 1000 nm. This eliminates star bloating and IR thermal noise without requiring additional filters in your optical train.

Q: Will the L-Quad Enhance Filter cause vignetting on full-frame sensors?

When mounted close to the sensor using standard M48 connections, light vignetting on full-frame sensors is minimal and easily corrected with standard flat calibration frames. It provides clear, unvignetted illumination across APS-C and smaller sensors.

Bortle Sky Performance

Q: What sky conditions (Bortle levels) is the L-QEF optimized for?

The Optolong L-Quad Enhance Filter is engineered for Bortle 1 through Bortle 7 sky conditions. It excels in suburban-to-rural environments by increasing signal-to-noise ratio (SNR) while retaining natural star colors and subtle continuous-spectrum target details.

Q: Can I use the L-QEF in severe light pollution (Bortle 8 or 9 inner cities)?

While the L-QEF offers noticeable contrast improvement in Bortle 8/9, broadband light pollution from modern unshielded LED streetlights can overwhelm mild broadband filters. For heavy inner-city pollution (Bortle 8–9), narrow dual-band or extreme narrow-band filters (like the Optolong L-eXtreme or L-Ultimate) are recommended for emission nebulae. However, for galaxies and star clusters in Bortle 8/9, the L-QEF remains one of the best color-balanced choices available.

Filter Comparison: L-Quad vs. L-Pro vs. L-Enhance

Q: How does the L-Quad Enhance compare to the Optolong L-Pro and L-Enhance filters?

Choosing the right filter depends on your primary target (broadband vs. emission nebulae) and color fidelity preferences.

Summary of Key Differences:

1. L-Quad vs. L-Pro: The L-Quad is the modern successor to the L-Pro. It aggressive cuts light pollution in the 575 nm to 625 nm spectrum while maintaining higher throughput for $\text{H}\beta$, $\text{OIII}$, $\text{H}\alpha$, and $\text{SII}$ lines. It provides better background suppression and color fidelity than the original L-Pro.

2. L-Quad vs. L-Enhance: The L-Enhance is a dual-band filter meant exclusively for emission nebulae, suppressing star light and altering natural star colors. The L-Quad is a versatile broadband filter designed to preserve natural star colors and render continuous-spectrum targets (like the Andromeda Galaxy or Pleiades) accurately.
