PlaneWave PW1000 Observatory System

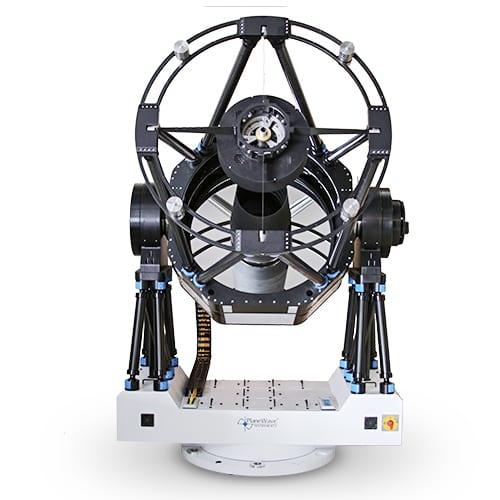

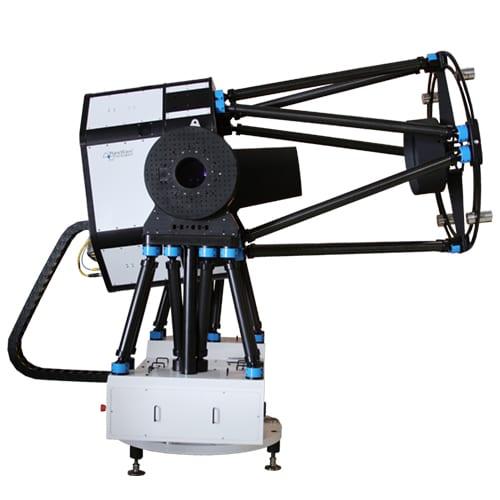

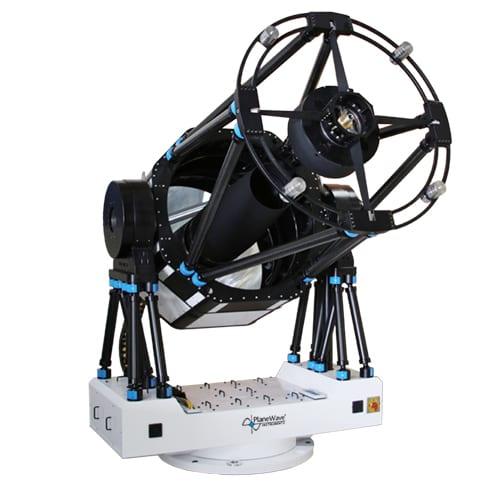

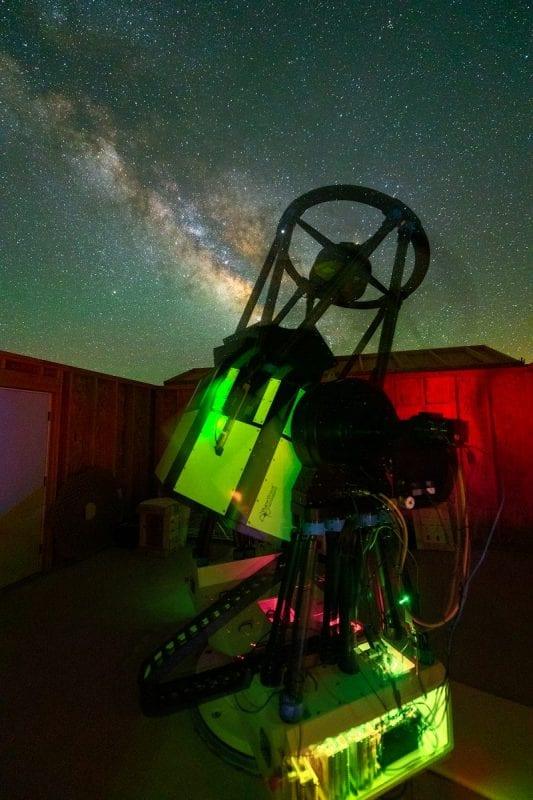

The PW1000 is a complete 1-meter observatory-class telescope featuring a direct drive altitude-azimuth (Alt-Az) mounting system designed and engineered by PlaneWave. With a diffraction-limited 100mm image circle, the PW1000 is designed to excel at imaging on the largest format CCD cameras available today. Light-weighted optics are made of zero expansion fused silica materials for excellent thermal stability and maximum throughput. The dual Nasmyth ports allow two instruments to be installed simultaneously, and a computer-controlled M3 mirror allows either instrument to be remotely selected in seconds. With direct-drive motors, high-resolution encoders, zero-backlash and no periodic error, the PW1000 sets a new standard in 1-meter class observatory telescopes.

The PW1000 is a complete 1-meter observatory-class telescope featuring a direct drive altitude-azimuth (Alt-Az) mounting system designed and engineered by PlaneWave. With a diffraction-limited 100mm image circle, the PW1000 is designed to excel at imaging on the largest format cameras available today. Light-weighted optics are made of zero expansion fused silica materials for excellent thermal stability and maximum throughput. The dual Nasmyth ports allow two instruments to be installed simultaneously, and a computer-controlled M3 mirror allows either instrument to be remotely selected in seconds. With direct-drive motors, high-resolution encoders, zero-backlash and no periodic error, the PW1000 sets a new standard in 1-meter class observatory telescopes.

Alt-Az mounts are the choice for most modern professional observatories. An Alt-Az mount is inherently more stable than an equatorial mount since there is no cantilevered mass, nor are there any large protruding counterweights to create a dangerous hazard in a public observatory. An Alt-Az telescope is also considerably more compact than its equatorial counterpart, allowing a larger telescope to fit in a smaller enclosure. The mass required to make a rigid Alt-Az mount is substantially less, leading to substantial cost savings. Unlike German Equatorial mounts, there are no meridian flips to deal with; you can image continuously from horizon to horizon if desired. With no polar alignment required, the Alt-Az mount is far more intuitive to use than a German Equatorial mount.

Proven Technology of the CDK700

The CDK (Corrected Dall-Kirkham) Optical Design is an innovative solution for unsurpassed scientific investigation, visual observing and astro-imaging at an affordable price. It has excellent performance with large format CCD cameras, far exceeding the off-axis performance of most commercial telescope designs, including the uncorrected Ritchey-Chrétien.

Our design produces a flat, coma-free and astigmatic-free field of view. Since the secondary mirror is spherical, centering is very forgiving, making it easy to align the telescope optics for optimum performance. The end result at the image plane is no off-axis coma, no off-axis astigmatism, and a perfectly flat field to the edge of a 100mm image circle.  The stars will be pinpoints from the center to the corner of the field of view.
