SBIG Aluma CCD8300 with 2-Stage Cooling

Modern Telescopes, India's largest telescope store, presenting SBIG Aluma CCD8300.

Our high performance Aluma® Series cameras offer capabilities and features not available in any other scientific-grade imaging camera.  This lightweight (2.2 lbs) and compact (4.5″ x 4.5″ x 4″ with handles) camera includes two-stage cooling, USB 2.0 interface, ultra-reliable even-illumination shutter, and fast low-noise readout.

The Aluma series supports a wide range of accessories, including the 8-position FW8S-Aluma filter wheel with micron-level filter positioning, StarChaser SC-2 off-axis guide camera, and AO-8A Adaptive Optics accessory.

Aluma CCD is a new generation of research cameras tuned for even better performance. Over two years of collaboration with university researchers helped us bring you an enhanced new Aluma CCD series that represent the best value in a high-performance mid-sized 16-bit CCD detector. We have carefully refined the camera electronics for improved performance, minimum amp glow, and low noise

Aluma Features include:

• High-performance CCD imaging sensors
• Light weight, compact design
• Centered optical axis for optimum instrument balance
• Ultra reliable even-illumination (photometric) mechanical shutter
• USB 2.0 interface
• Full frame image buffering eliminates readout artifacts
• 2-Stage TE cooling with typical -50C from ambient

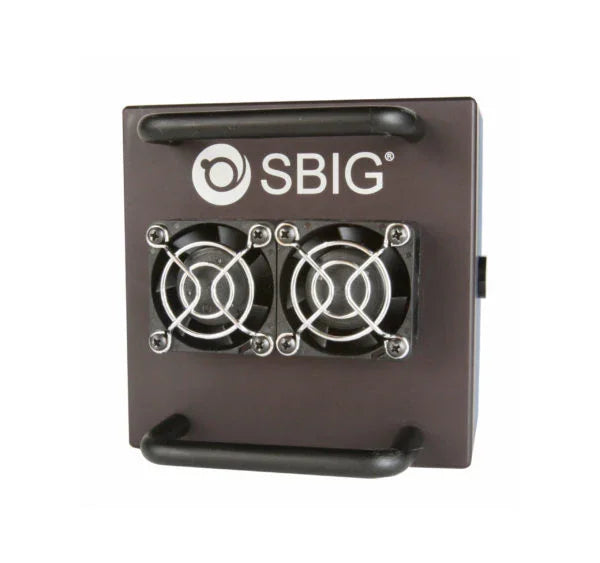

• Twin variable speed fans with SmartCoolingTM technology
• High accuracy temperature regulation
• Built-in RBI Pre-flash (full frame front-illuminated sensors only)
• External TTL trigger inputs and output
• Included 110V / 220V power supply and optional 12VDC operation
• User-rechargeable desiccant plug
• Built-in 1/4-20 tripod mount
• Support for high precision 8-position filter wheels
• Works with StarChaser SC-2 off-axis guide camera and AO-8A adaptive optics
• Bulletproof firmware update capability – virtually impossible to “brick”

Software Included

All Aluma CCD models ship with MaxIm LT for Windows – a special version of MaxIm DL specific to our cameras. Aluma also supports third-party applications through ASCOM and native drivers.

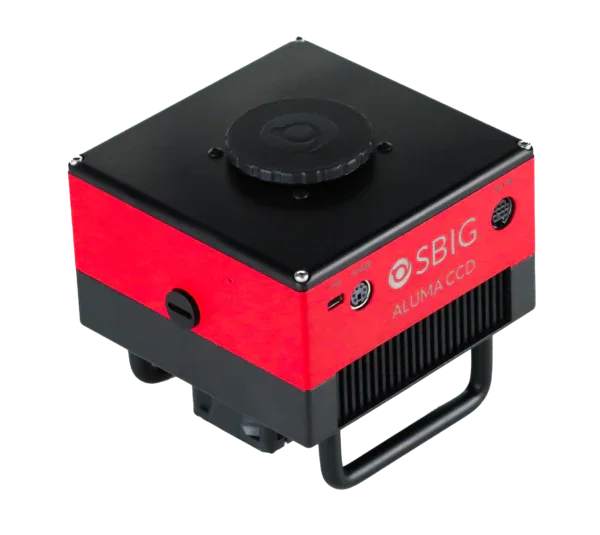

Compact and Lightweight Design

Aluma cameras measure just 4.25″ x 4.25″ x 4.0″ with handles (3.5″ without handles) and weigh just 2.2 lbs (1 kg).
